AMGO Hydraulics OH-12 Heavy-Duty 2 Post Lift 12,000 lbs
Please EMAIL for updated pricing and lead times. Online ordering is disabled at this time due to inventory shortages and manufacturer price increases.
SAVE BIG! Pickup Available in South Carolina Factory. Call for Details.
AMGO Heavy duty two post lifts are the best choice for heavy duty vehicles or trucks in commercial shops… stronger and higher!
Three-Stage Arms
4 three-stages arms allowing to lift the trucks from short to long wheel base
Arm Lock
Automatic arms restraints and release.
Single Point Release
Single Point safety release makes it easy for the operator to unlock both column locks from one column.
Features
• 12,000 lbs capacity
• Single-point safety release
• 4 three-stages arms allowing to lift the trucks from short to long wheel base
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Adjustable two height setting accommodate varying service ceiling heights
• Aircraft quality cable is used for synchronization
• Detachable foot guard and tool tray to allow for a clutter free work space
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
Details
Specifications
| Model | OH-12 |
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Time | 69S |
| A:Lifting Height | 72 1/2″ ~ 81 1/2″ (1842~2071mm) |
| B:Overall Height | 174″/ 198″ (4420/5029mm) |
| C:Overall Width | 150 3/4″ (3829mm) |
| D:Drive-Thru Clearance | 109 3/4″ (2787mm) |
| E:Width Between Columns | 123 1/2″ (3137mm) |
| F:Minimum Pad Height | 4 1/2″ (115mm) |
| Motor | 2.0HP/220V/50Hz,Single Phase |
| Gross Weight | 2,355 lbs (1068 kg) |
Detailed Images

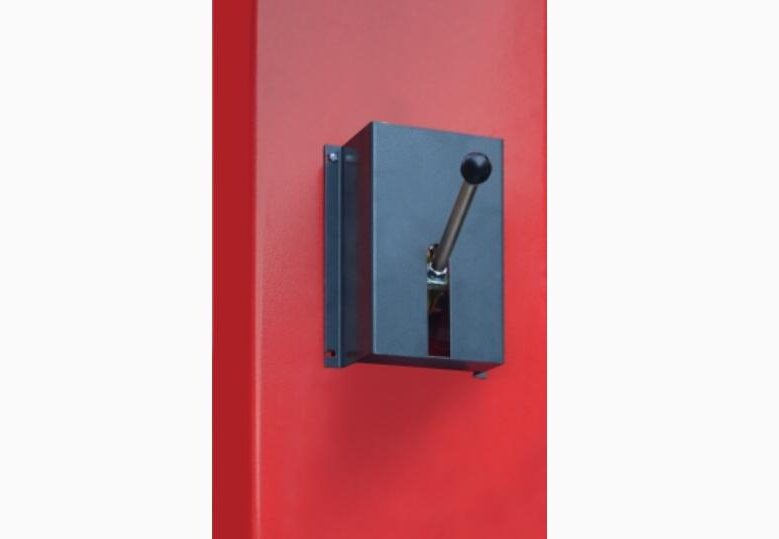

- Single point safety release makes it easier for operators to unlock both columns locks from one column.

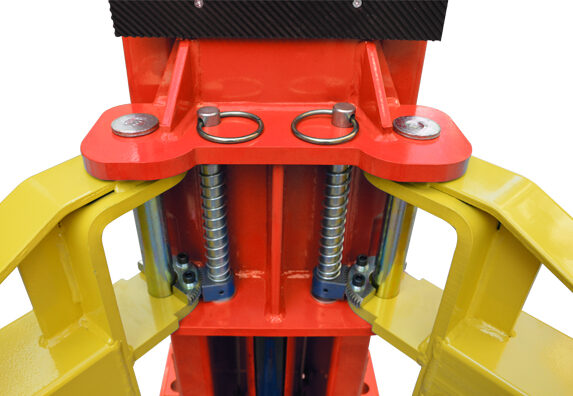

- Automatic arms restraints and release.

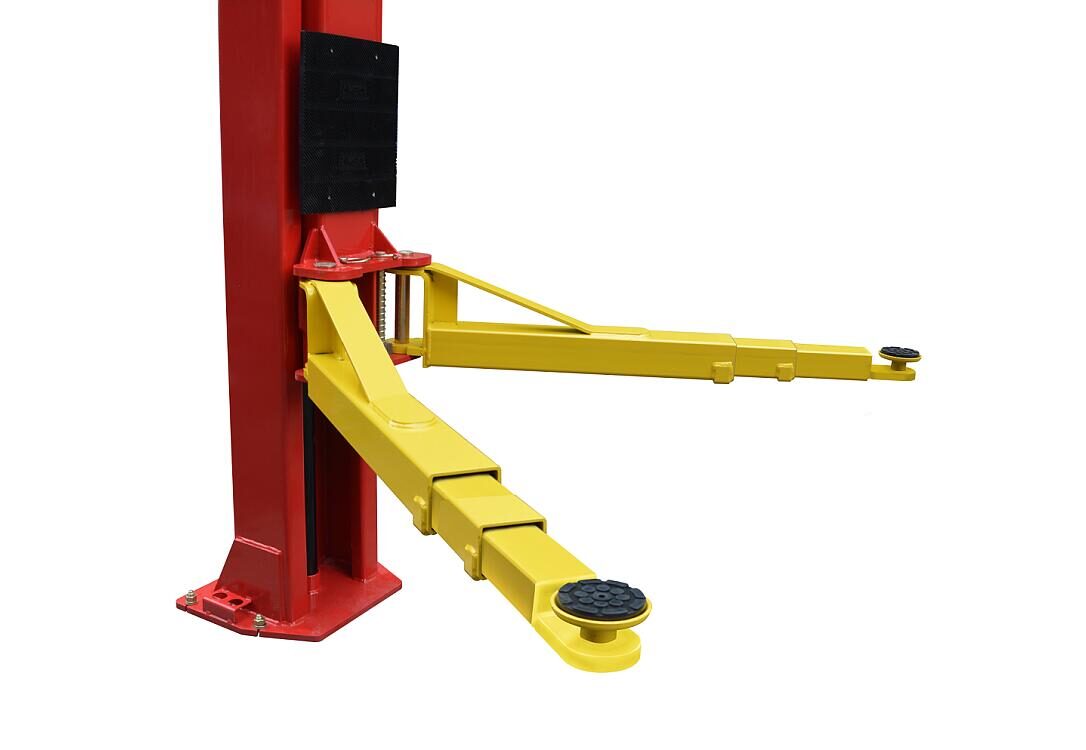

- 4 three-stages arms allowing to lift the trucks from short to long wheel base.
- The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.
- Optional saddle adapter. kits No. for light truck:20802 kits No. for heavy-duty truck:21103
- The Optional Base Plate Kits No.21501,lncluding extension frames,and 14 pcs of our standard Anchor Bolts.

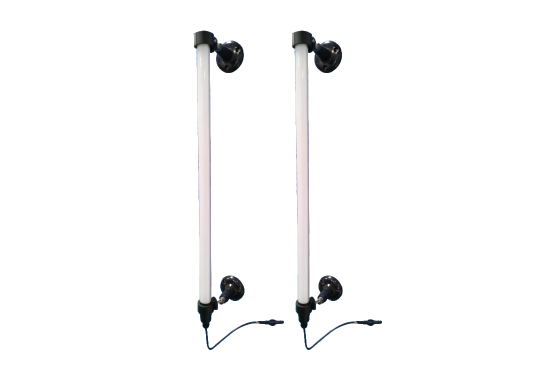

- Optional LED light for all two post lifts Floor plate two post lifts LED light，Kits No.:40101001; Clear floor two post lifts LED light，Kits 40101001 plus extension cable 201128
